Compact six-axisFlexible Small Pick-Up Robot
Small-part transfer, compact machine service and fast positioning.
- 990 mm reach
- 5 kg payload
- ±0.05 mm repeatability
Representative handling robots
From compact transfer to 300 kg payloads.
Compare representative robot architectures for material handling. We confirm the final platform only after reviewing the complete moving payload, reach, cycle, tooling and environment.
Shortlist a robot for my applicationPayload is not a specification.
Tooling mass, centre of gravity, wrist moments, acceleration, reach, duty and safety behaviour all affect suitability.
Reference rangeRobot options for
Robot options for
real handling tasks.
Published figures are reference data for the illustrated platforms. Final performance and model selection are confirmed against your application before order.
Compact six-axis
Collaborative robotSix-Axis Collaborative Robot
Light handling, packaging, assembly support and suitable operator-adjacent tasks.
- 930 mm radius
- 5 kg payload
- 0.05 mm repeatability
General industrialProfessional Six-Axis General Robot
Production-line handling, machine tending, loading, unloading and component transfer.
- 2,550 mm reach
- 50 kg payload
- 0.1 mm repeatability
Long-reach handling65 kg Long-Reach Robot
High-layer stacking, handling, loading, unloading and raw-material feeding.
- 2,334 mm reach
- 65 kg payload
- ±0.15 mm repeatability

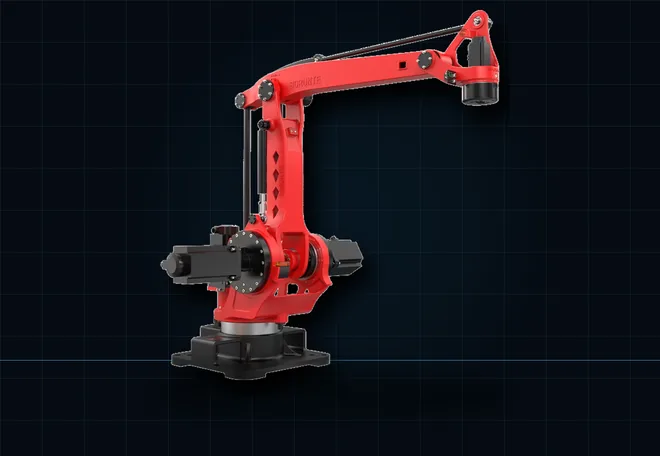

Stacking & handling80 kg Four-Axis Robot
Stacking, product transfer, loading, unloading and dismantling tasks.
- 2,400 mm reach
- 80 kg payload
- ±0.5 mm repeatability

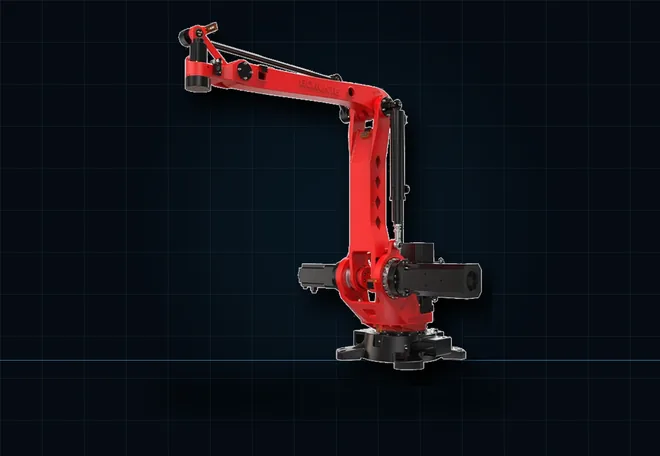

Heavy-duty handling160 kg Multifunctional Robot
Heavy stacking and large-work-envelope material movement.
- 3,100 mm reach
- 160 kg payload
- ±0.5 mm repeatability

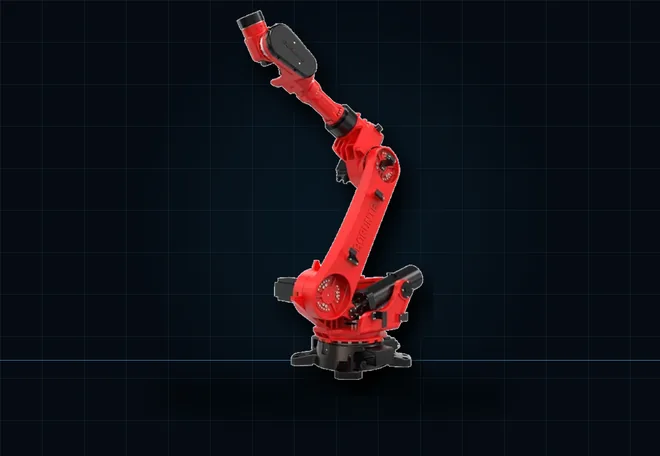

Heavy six-axis170 kg Six-Axis Robot
Large-part handling, machine loading and unloading, transfer and metal processing support.
- 3,168 mm reach
- 170 kg payload
- ±0.2 mm repeatability

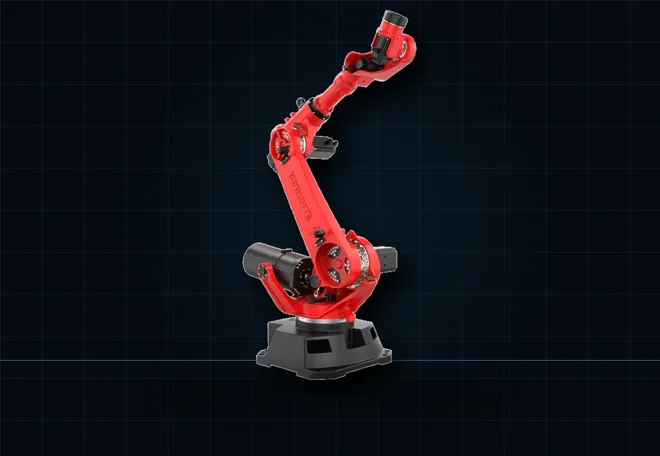

Very heavy six-axis300 kg Ultra-Long-Span Robot
Very heavy loading, unloading and transport of large production components.
- 2,832 mm reach
- 300 kg payload
- ±0.2 mm repeatability
Architecture guide
Choose motion for the task—not familiarity.
Six-axis robots
Flexible orientation and access for machine service, transfer, reorientation and complex paths.
Four-axis handling robots
Efficient large-work-envelope movement for structured stacking and transfer tasks.
Collaborative robots
Potentially suitable for lighter flexible tasks where the complete risk assessment supports the intended operation.
SCARA & parallel robots
High-speed planar or conveyor-based handling for suitable lighter products and defined work envelopes.
Start with the application
Let the application choose the robot.
Send the product, weight, pickup and placement details, target output and a photo or video of the current process. We will define the next technical step.
